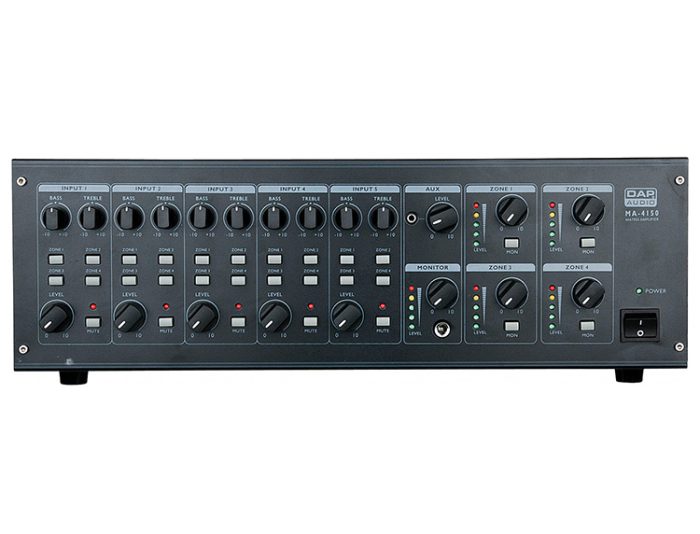

• 4 individual 150W outputs
• 5 Inputs with matrix functionality
• Bass & Treble control on each channel
• Front line input, 3.5mm Jack
• Pre amp zone outputs
• Telephone paging with volume & zone control
• 4/8Ohm & 25/70/100V output
• Monitor output
• Priority on input 1
• Limiter protection
Specifications
- Output Power: 4 x 150W
- Power outputs: 4Ohm, 8Ohm, 25V, 70V, 100V (terminal strip)
- Zone pre amp outputs: Terminal strip
- Input 1: Line/Microphone with variable gain and phantom power (XLR/Jack combo)
- Input 2: Line/Microphone with variable gain and phantom power (XLR/Jack combo)
- Input 3: Line/Microphone with variable gain and phantom power (XLR/Jack combo)
- Input 4: Line with variable gain (RCA)
- Input 5: Line with variable gain (RCA)
- Indication LEDs: VU bar with clip indication each zone
- Tone control: Bass 100 Hz, treble 10 KHz, +/-12dB
- Priority: Input 1 (terminal strip, N.O. contact)
- Monitor output: 1W 8Ohm & Line, terminal strip
- Tel paging zone: By dipswitch back panel
- Main power supply: 230V AC, 50/60Hz
- Power consumption: 1100W
- Power connection: IEC
- Dimensions: 420 x 374 x 145 mm (WxDxH)
- Weight: 12,5Kg
- Accessories: 19″ Rack mounts
- Full specification in manual
