Opis

Izredno dobro ozvočenje za glasbene skupine, izredno dober zvok, velik domet zvoka, zelo nizka stopnja mikrofonije, primerno za problematične prostore, zelo priporočljivo ozvočenje. Glavne značilnosti
Prenosni line array sistem
1,000 W RMS in 131 dB max. SPL
WaveAhead® tehnologija za high definition audio
Ozvočenje je primerno za uporabo od blizu in na večje razdalje
6 DSP presetov
SmartLink® plug & play adapter
Ohišje satelitov iz trpežnega aluminija
18 mm vezana plošča za subwoofer ohišje
Set vsebuje:
Subwoofer z DSP in ojačevalniki za bas, in satelite
Distančnik za satelite, Smart link adapter za spojanja satelitov
2 kom CURV 500® enojni satelit
2 kom CURV 500® dvojni satelit
Kabel za povezavo med basom in satelitom (2,2m)
PR 8681

SPECIFIKACIJE

Product type
PA Complete Systems

System output (RMS):
1000 W

Colour
Black

Number of array satellites
4

Number of Smartlink adapters
1

Number of subwoofers
1

Max. SPL (continuous)
125 dB

Max. SPL (peak)
131 dB

Frequency response
40 – 20000 Hz

Dispersion (H x V)
110° horizontal, vertical 30 °

RMS
Subwoofer: 700 W , Array Satellites: 300 W

Peak power
Subwoofer: 1400 W , Array Satellites: 600 W

Weight
0,001 kg

Amplifier
Class D

Protection circuits
DSP-based multiband limiter , overload , short circuit , thermal overload

Accessories (included)
Distance bar , Power cord , Speaker cable CURV 500 CABLE 1 (2.2 m)

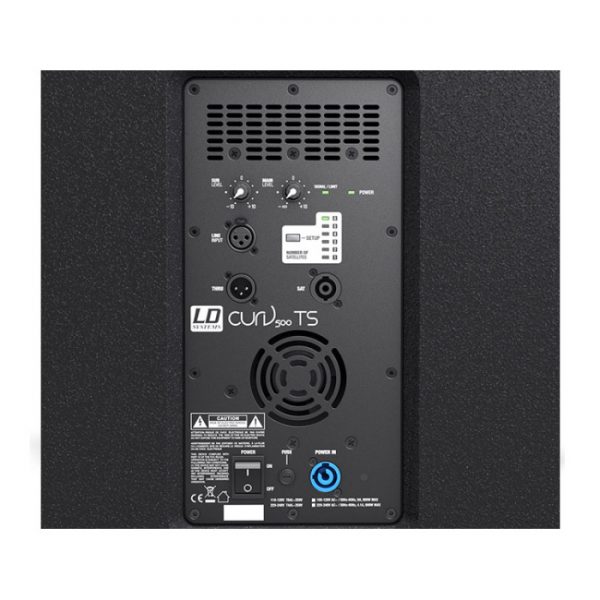

Subwoofer


Low/mid driver dimensions
15 “

Low/mid driver dimensions (mm)
381 mm

Cabinet construction
vented

Housing material
plywood

Cabinet surface
Polyurea

Dimensions Subwoofer (W x H x D)
600 x 437 x587 mm

Subwoofer weight
35.5 kg

Subwoofer features
4 ergonomic handels , 6 System DSP Presets , Powercon , speakON output , Threaded flange M20

Array Satellites (Double)


Mid/Hi system
MF: 2 x 4″ / HF: 6 x 1″ with WaveAhead® Technology / 16 ohms

Array Satellite Features
internal crossover , metal grille , WaveAhead® Technology

Array Satellite Material
die-cast aluminium

Array Satellite Surface:
powder coated

Array Satellite Dimensions (W x H x D)
122 x 240 x 126 mm

Array Satellite Weight
3.3 kg

LDCURV500S2 – LD Systems CURV 500 S2 Two Array satellites for the CURV 500 Portable Array System, black

Product type
PA Complete Systems Accessories

Type
Array Satellites

Midrange size
1 x 4 “

Tweeter dimensions
3 x 1 “

Load rating (RMS)
40 W

Peak power
80 W

Dispersion
110° horizontal, vertical (each satellite) 10 °

Impedance
16 Ohm(s)

Material
die-cast aluminium

Surface
powder coated

Colour
Black

Width
122 mm

Height
122 mm

Depth
122 mm

Weight
3,44 kg

Features
WaveAhead® Technology

LDCURV500SLA – LD Systems CURV 500 SLA SmartLink Adapter for up to four LD CURV 500® satellites, black

Type
Smartlink® Adapter

Connectors
1x Speakon compatible

Depth
57 mm

Weight
0,35 kg

Features

2x M6 thread for optional wall mount

Garancija: 24 mesecev

Povezava na uradno stran proizvajalca: file:///C:/Users/Dejan/Downloads/LD_Systems_Catalogue.pdf
